אקסס פוינט תקרתי EAP610 AX1800 OMADA
אקסס פוינט למערכות Festa ו-Omada • מהירות AX1800 Wi-Fi 6 • מיועד להתקנה על הקיר או התקרה
- תומך במהירות AX1800 – מהירות ב2.4GHz: 574Mbps ומהירות 1201 בתדר 5Ghz.
- חיבורים: 1× Gigabit Port וחיבור חשמל 12 V /1.5 A DC
- שימוש נוח ופשוט באמצעות אפליקציות תומכות ענן Festa ו-Omada (יושב על שרתי אמזון AWS)
- תומך ב-Zero Touch Provisioning (סריקת ברקוד המכשיר להוספה מהירה של המכשיר לתשתית
אינטרנט). - תומך MU-MIMO Omada Mesh




Product description

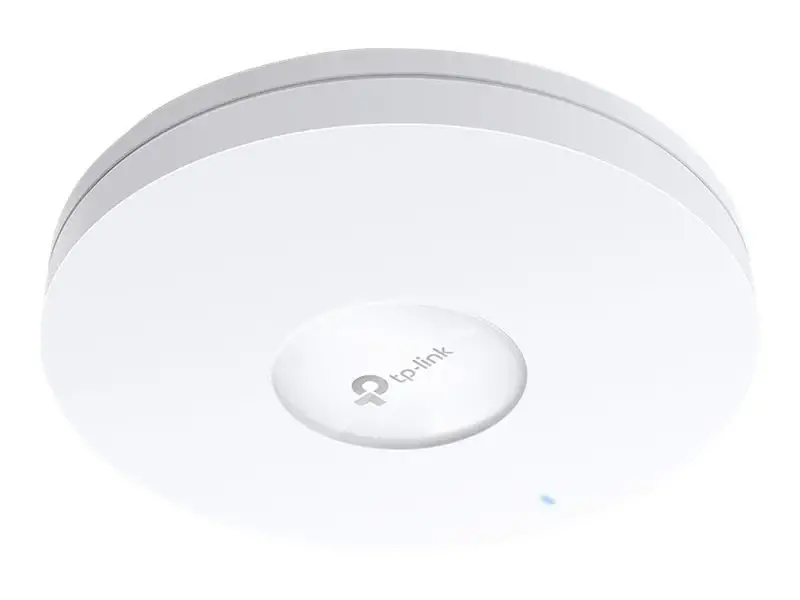

The EAP610 is an Access Point from the EAP family from TP-link, with Roaming and the latest technologies such as 802.11ax MU-MIMO
support and easily reaches speeds of up to 1201 + 574 Mbps for multiple devices at the same time, thanks to 2x2 MIMO on both radio parts.
A Gigabit LAN port with PoE is used for communication to the LAN network and powering.
For great coverage, the AP has a total of 4 antennas built-in, 2 of which operate 2.4GHz radio and have a gain of 4dBi and the remaining 2 antennas
take care of 5GHz and have a gain of 5dBi.
Thanks to these conveniences, the access point has a maximum consumption of 12,8W and can be powered either directly via a 12V DC power adapter
or via 802.3at PoE. Great news is encrypting wireless traffic with WPA3.
Easy for Centralized Management
Manage and monitor hundreds of EAPs with ease, all from a single location. The TP-Link Omada Controller software provides an intuitive management interface.
Control and map out the entire network from any connected PC.
There’s no added cost, and no need for special training. Business Wi-Fi management has never been so efficient and cost-effective.
Efficient Guest Authentication with Facebook and SMS Support
Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access.
The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.
Package contains
- Unit EAP610
- Power adapter
- Ceiling kit
Technical parameters
Wireless features
Wireless frequency : 2.4 + 5 GHz (dual band)WiFi standards : 802.11ac, 802.11ax, 802.11n, 802.11a, 802.11b/gMU-MIMO : YesTransmission speed - 5GHz [Mb/s] : 1201Transmission speed - 2.4GHz [Mb/s] : 574Tx power 2.4GHz [dBm] : 25Tx power 5GHz [dBm] : 25Security : WPA, WPA2, WPA32.4GHz MIMO : 2 x 25GHz MIMO : 2 x 2Internal antennas : 4Roaming : YesAntenna gain [dBi] : 5Connectors and Interfaces
LAN speed : (1) 10/100/1000MbpsGigabit LAN : YesPower
Power over Ethernet : 802.3atPoE type : PoE-In (only)Max. power consumption [W] : 12,8Power via connector/terminal : 12V / 1APhysical characteristics
Purpose : IndoorOperating temperature [°C] : 0 up to 40Width [mm] : 243Height [mm] : 64Depth [mm] : 243Software
Operating mode : Access PointManagement : Omada controllerIPv6 support : Transparent (bridge mode)
