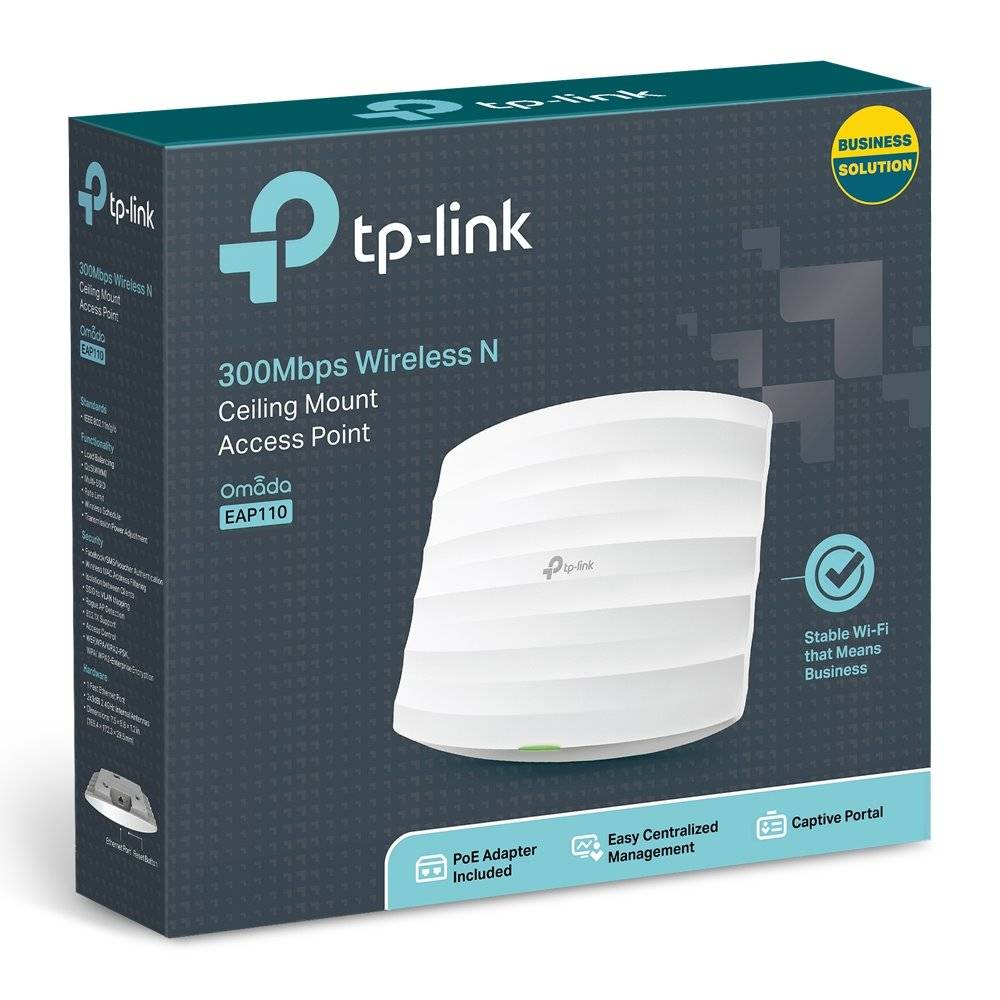

TP-Link EAP110 Access Point
מראה "מנורת התקרה" של ה-EAP ועיצוב ההרכבה הקל עם השלדה מקלים על השילוב בצורה חלקה
בכל משטח קיר או תקרה כדי להשתלב עם רוב קישוטי הפנים.
EAP110 תומך ב-PoE פסיבי כדי להפוך את הפריסה ללא מאמץ וגמיש.




Product description
The EAP’s "ceiling lamp" appearance and easy mounting design with chassis make it easy to be integrated seamlessly into any wall or ceiling
surface to blend in with most interior decorations. EAP110 support Passive PoE to make deployment effortless and flexible.
Business Class Wireless - Powerful Hardware
AP110 features 802.11n Wi-Fi and 2*2 MIMO technology, wireless speeds of up to 300Mbps. With Qualcomm Atheros 560MHz chipsets,
EAP ensures incredible wireless coverage and reliability.
Free Centralized Management Platform
EAP Controller Software
EAP Controller Software enables users to manage hundreds of TP-LINK’s EAPs simultaneously and easily from PCs in the network, making
centralized business Wi-Fi management efficient, visible and more cost-effective like never before.
Efficient Guest Authentication - Captive Portal
Captive portal provides one convenient method of authentication for Wi-Fi guests. A captive portal requires users to perform certain actions
before network access is allowed. The required action must be verified by an external portal server or customized database by the administrator,
which can be simply viewing and agreeing to an acceptable use policy, or entering a user ID and password.
Applicable to Multi-user Environment
Designed for Business Performance
With easy mounting design, PoE power supply, Cluster feature, Centralized management software, Captive portal, Auto RF management,
and business hardware, EAP series are specially designed for the high-density, most demanding business
environments, including schools, hotels, and enterprises.
Package contains
- Device
- PoE power adapter 24V/0.5A
- Power cord
- Screws, holding material
Technical parameters
Wireless features
Wireless frequency : 2.4 GHzWiFi standards : 802.11b/g, 802.11nTransmission speed - 2.4GHz [Mb/s] : 300Tx power 2.4GHz [dBm] : 20Security : 64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK2.4GHz MIMO : 2 x 2Type of antenna : Built-inInternal antennas : 2Roaming : YesAntenna gain [dBi] : 3Connectors and Interfaces
LAN speed : (1) 10/100MbpsPower
Power over Ethernet : 24V DCPoE type : PoE-In (only)Max. power consumption [W] : 2,8Physical characteristics
Purpose : IndoorButtons : ResetOperating temperature [°C] : 0 up to 40Width [mm] : 180Height [mm] : 180Depth [mm] : 48Software
Operating mode : Access PointManagement : Omada controllerDefault IP address : Dynamic from DHCPDefault login and password : admin / admin
