MikroTik Cloud Router Switch CRS504-4XQ-OUT
מתג חיצוני QSFP28 ללא מאוורר בעל 4 יציאות עם סנפירים בגב ואפשרויות ניתוב מציע Gigabit Ethernet לניהול או אספקת
חשמל PoE IN (43 עד 57 V DC או 802.3 bt), 4 יציאות QSFP28 אופטיות עם מהירות 1/10/25/40 ו 100 Gbps, יציאת RJ45 מסוף,
מחבר DC ובלוק מסוף עם ספק כוח 43 עד 57 V DC.
ל-Switch שלדה חזקה מאוד עם הגנת מים IP66, אפשרות להתקנה על קיר או תורן, ובחלק התחתון יש דלתות ל-4 ברגים צולבים
ו-3 אטימות כבלים גדולות עם מספיק מקום לכל הכבלים.
הן RouterOS v7 עם רישיון L5 והן SwitchOS, המיועדת לניהול קל יותר, מותקנים בתוך המכשיר.




Product description
Outdoor 4-port QSFP28 fanless switch with fins on the back and routing options offers Gigabit Ethernet for
management or PoE IN power supply (43 to 57 V DC or 802.3 bt), 4 optical QSFP28 ports with speed 1/10/25/40 and 100 Gbps,
console RJ45 port, DC connector and terminal block with power supply 43 to 57 V DC.

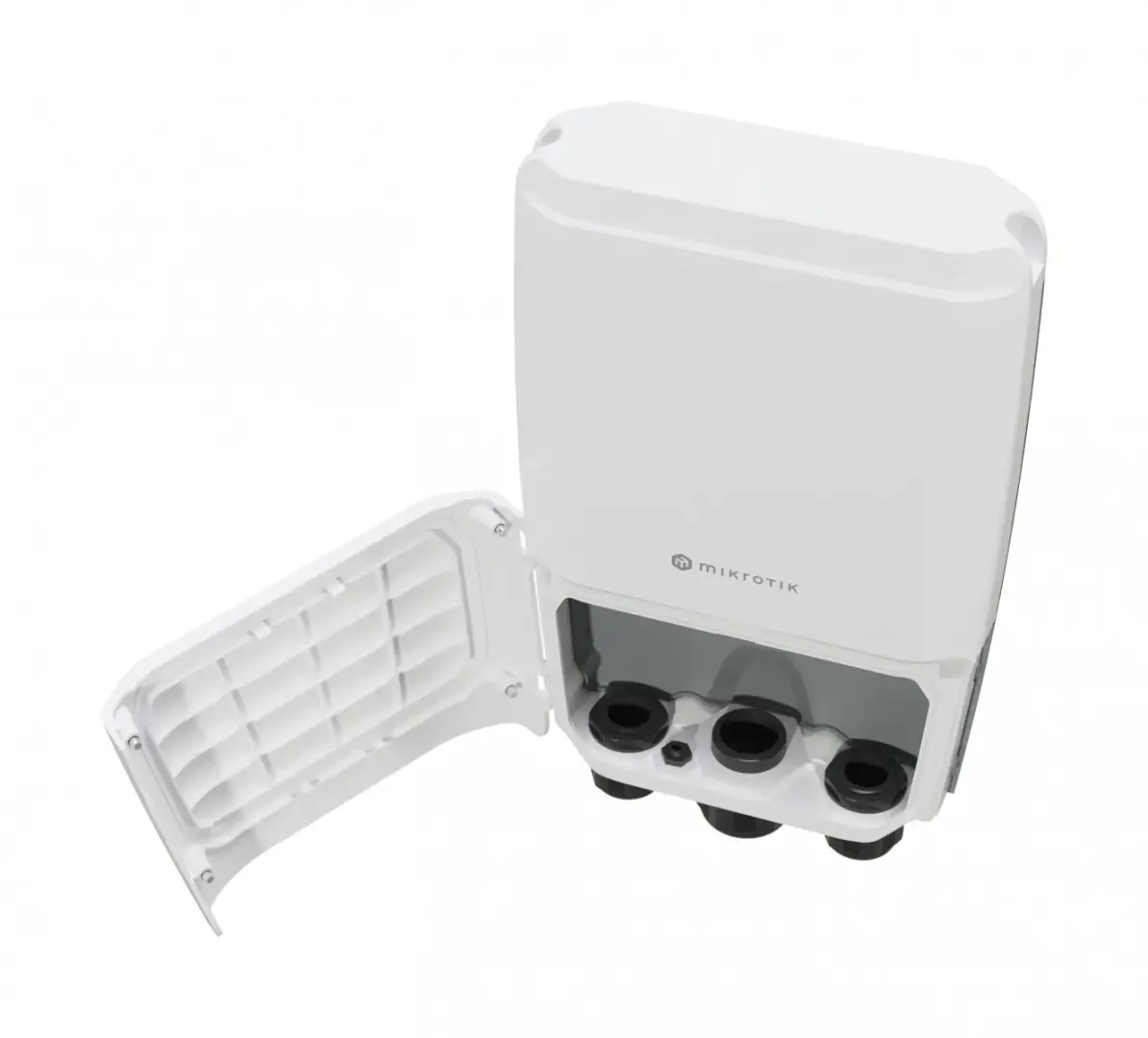

The Switch has a very robust chassis with water protection IP66, the possibility of installation on a wall or a mast, and in the lower
part there are doors for 4 cross-head screws and 3 large cable grommets with enough space for all cables.
Both RouterOS v7 with an L5 license and SwitchOS, which is intended for easier management, are installed inside the device.
Package contents
- Device
- Gigabit PoE injector
- Power adapter 48V/0.95A
- Wall brackets, screws
- Metal pull buckle
Technical parameters
Connectors and Interfaces
LAN speed : (1) 10/100/1000MbpsGigabit LAN : YesOptical interfaces : (4) 100GSerial port : RJ45Power
Power over Ethernet : 802.3bt, 43 .. 57V DCPower type : PoE, DC connector, DC terminalPoE type : PoE-In (only)Max. power consumption [W] : 38Power via connector/terminal : 36 .. 57V DCPhysical characteristics
Protection class : IP66Design : OutdoorFans : NoChassis design : PlasticOperating temperature [°C] : -40 up to 70Width [mm] : 200Height [mm] : 330Depth [mm] : 70Hardware
CPU : QCA9531CPU frequency [MHz] : 650CPU cores : 1Internal storage [MB] : 32RAM [MB] : 128General
Jumbo frame [Bytes] : 9000Software
Web management : YesManagement : Web managementFeatures : VLAN, QoSOperating system : SwOS, RouterOS - L5IPv6 support : YesDefault IP address : 192.168.88.1Default login and password : admin / -
