MikroTik Cloud Router Switch CRS305-1G-4S+OUT, FiberBox Plus

Product description

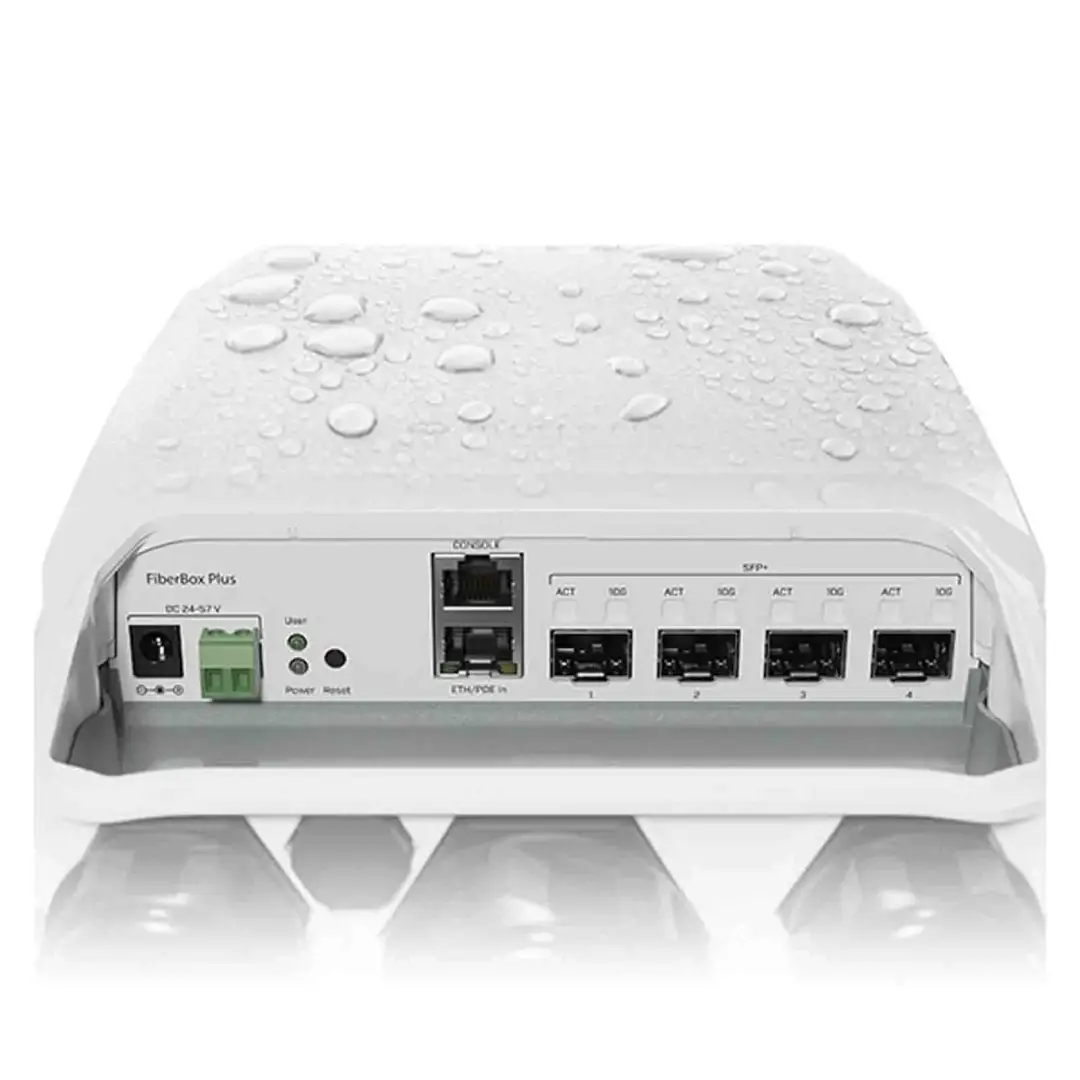

Outdoor 4-port SFP+ switch without fan and with fins on the back with routing option offers Gigabit Ethernet for management
or PoE IN power supply, 4 optical SFP+ ports with speed 1/10 Gbps, console RJ45 port, DC connector and terminal block with 24 to 57 V DC supply.

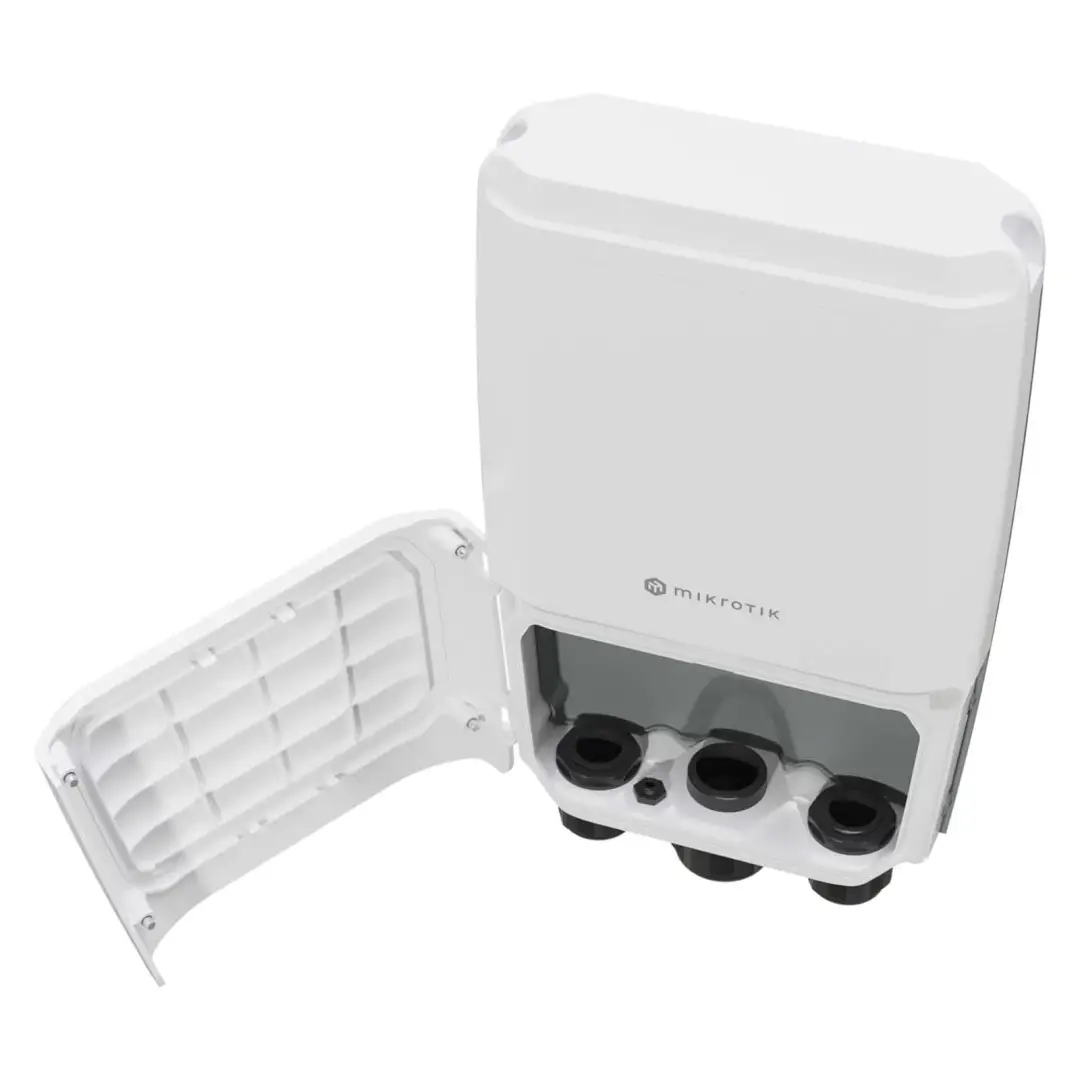

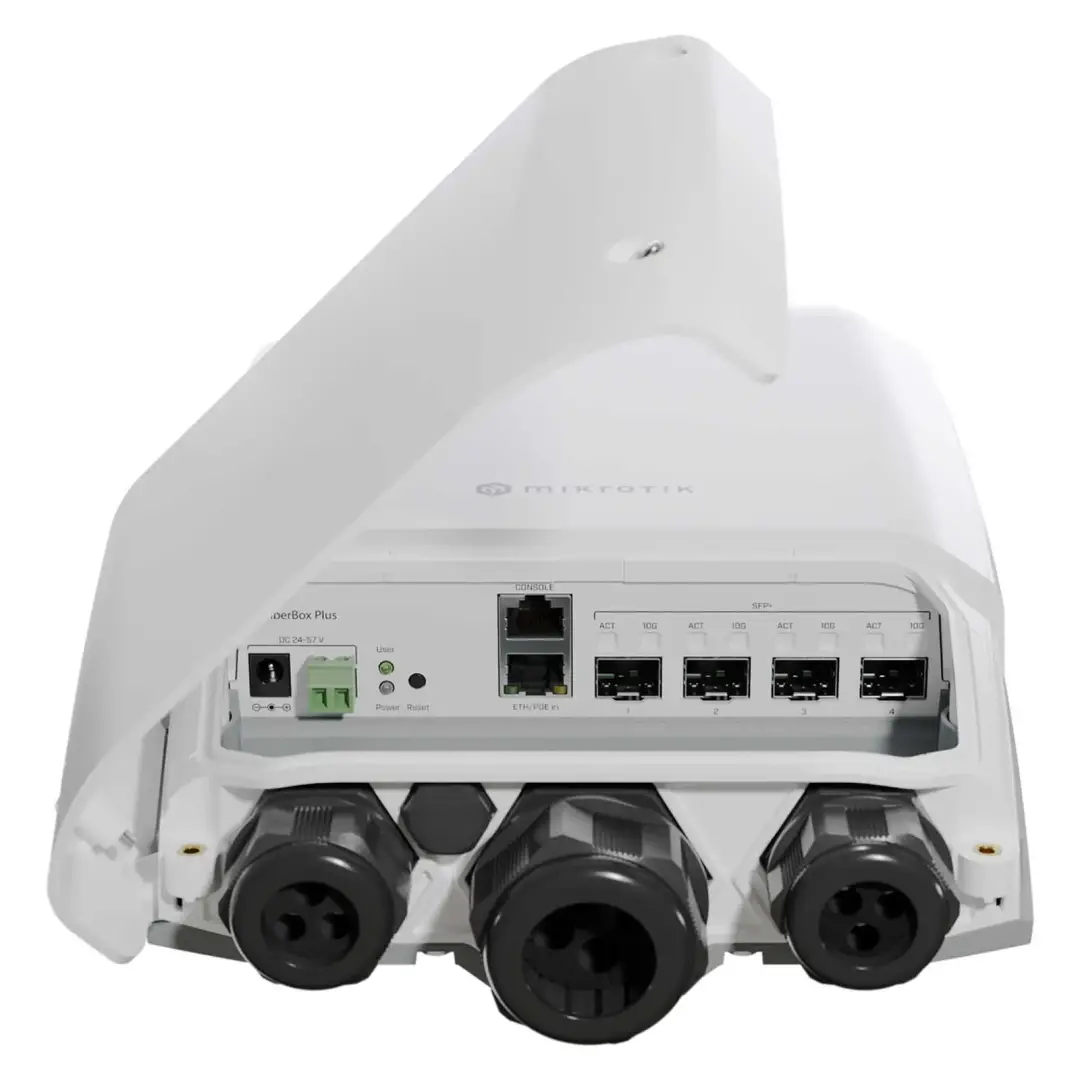

The Switch has a very robust chassis with water protection IP66, the possibility of installation on a wall or a mast, and in the lower part there are doors for
4 cross-head screws and 3 large cable grommets with enough space for all cables. Both RouterOS v7 with an L5 license and SwitchOS, which is intended for
easier management, are installed inside the device.

Package contents

• Device
• Gigabit PoE injector
• Power adapter 48V/1.2A
• Wall brackets, screws
• Hose clamp




  Technical parameters

  Connectors and Interfaces

  LAN speed : (1) 10/100/1000Mbps

  Gigabit LAN : Yes

  Optical interfaces : (4) 10Gbps

  Serial port : RJ45

  Power

  Power over Ethernet : 802.3af, 802.3at, 24 .. 57V DC

  Power type : PoE, DC connector, DC terminal

  PoE type : PoE-In (only)

  Max. power consumption [W] : 17

  Power via connector/terminal : 24 .. 57V DC

  Physical characteristics

  Protection class : IP66

  Design : Outdoor

  Fans : No

  Chassis design : Plastic

  Operating temperature [°C] : -40 up to 70

  Width [mm] : 200

  Height [mm] : 330

  Depth [mm] : 70

  Hardware

  CPU : 98DX226S

  CPU frequency [MHz] : 800

  CPU cores : 1

  Internal storage [MB] : 16

  RAM [MB] : 256

  Software

  Web management : Yes

  Management : Web management

  Features : VLAN, QoS

  Operating system : SwOS, RouterOS - L5

  IPv6 support : Yes

  Default IP address : 192.168.88.1

  Default login and password : admin / -
