Ubiquiti UniFi Switch US-XG-6POE
מתג 10 גיגה-ביט Ubiquiti UniFi Switch XG 6POE עם עיצוב שולחני עם הספק PoE מרבי של 170W.
לסוויץ' יש 4x יציאות LAN של 10 גיגה-ביט ו-2x 1/10G SFP+ יציאות אופטיות עם תפוקה כוללת של 120 Gbps.




Product description
10-Gigabit PoE switch Ubiquiti UniFi Switch XG 6POE with desktop design with maximum output PoE power 170W.

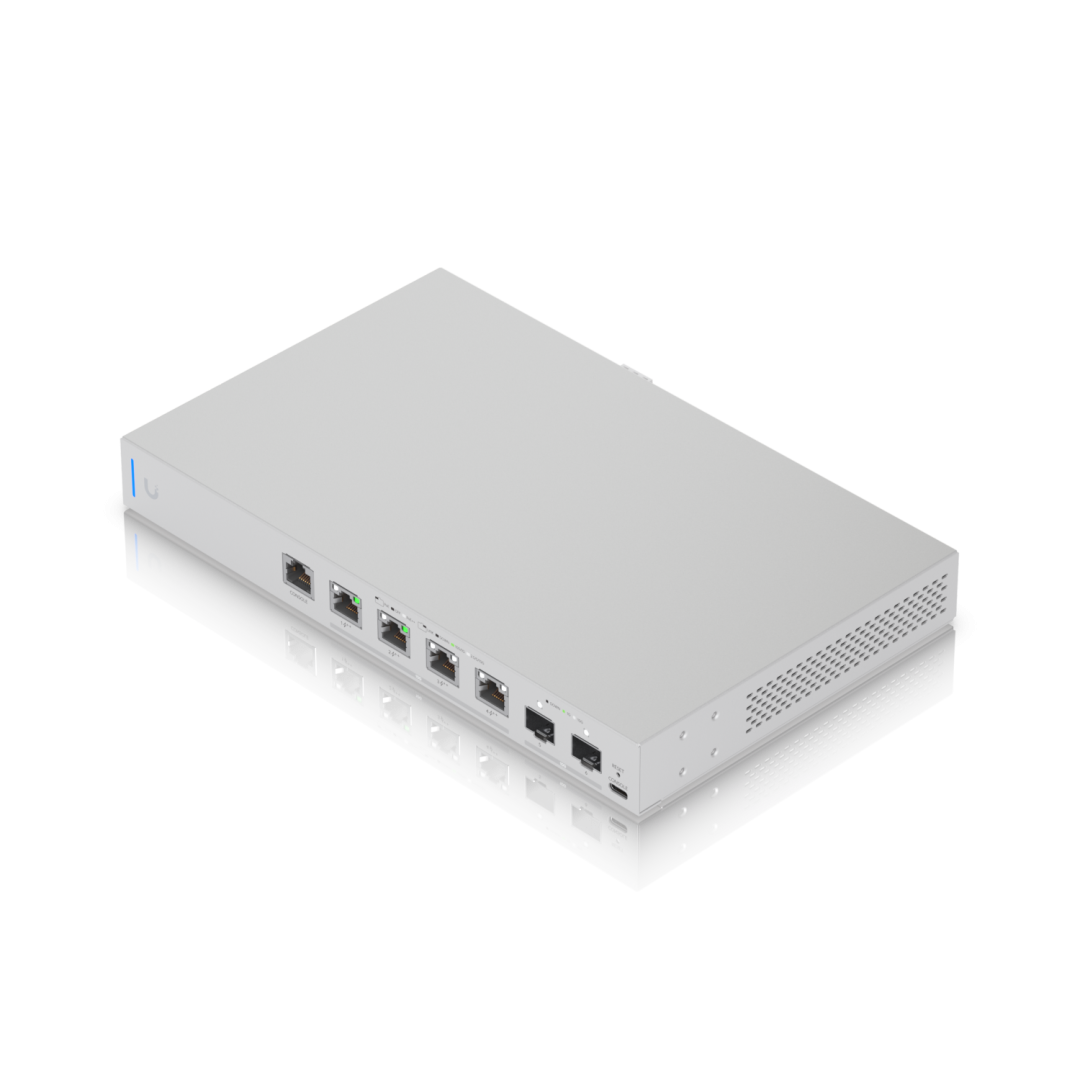

Switch has 4x 10-Gigabit LAN ports and 2x 1/10G SFP+ optical ports with overall throughput 120 Gbps.
60W PoE Out on each port
The biggest advantage of the switch is the output PoE on every 10Gbps metallic port that supports the 802.3af/at standards,
including the latest 802.3bt with a maximum output 60W/port. Automatic detection ensures full
functionality of 802.3af/at/bt devices without prior configuration.
Management over UniFi Controller
The main difference between UniFi switches and Edge Switches is web management - Edge Switche's WebGUI management is substituted by UniFi Controller in UniFi Switches.
Package contains
- Device
- Power adapter 54V/3.88A
- Power cord
- Screws, dowels
Technical parameters
Connectors and Interfaces
LAN speed : (4) 100M/1G/2.5G/5G/10GbpsOptical interfaces : (2) 1G/10GbpsSerial port : USB-C, RJ45Power
Power type : DC connector, DC terminalPoE type : PoE-Out (only)PoE-Out standards : 802.3af, 802.3at, 802.3btPoE Out ports : 4PoE budget [W] : 210Max. power consumption [W] : 40Power via connector/terminal : 44 .. 57V DCPhysical characteristics
Design : DesktopFans : Without fanChassis design : MetalButtons : ResetOperating temperature [°C] : -5 up to 45Width [mm] : 268Height [mm] : 32Depth [mm] : 165General
Switchning capacity [Gbps] : 120MAC address table : 16000Jumbo frame [Bytes] : 9000Packet forwarding rate [Mpps] : 89,3Software
Management : SSH, Telnet, UniFi NetworkFeatures : VLAN, DHCP snoopingDefault IP address : 192.168.1.20, Dynamic from DHCPDefault login and password : ubnt / ubnt
