Ubiquiti EdgeSwitch ES-8-150W
מתג PoE שולחני מסוג L3 Gigabit עם הספק פלט POE של 150W.
מתג ניתן לניהול עם 8 יציאות Gigabit Ethernet ו- 2 יציאות Gigabit SFP ותפוקה כוללת של 10Gbps.




Product description
ES-8-150W is L3 Gigabit desktop PoE switch version with 150W POE output power.
Managable switch with 8 Gigabit ethernet ports + 2 Gigabit SFP ports and a total throughput 10Gbps.
Biggest advantage is a Gigabit PoE on every port that can be set as active PoE 802.3af /at with maximum
output power 34,2W/port or Passive 24V with maximum output power 17W/port. Automatic detection ensures
full functionality 802.3af and 802.3at devices without prior configuration. Passive 24V PoE must be set manually.
Other advantages of the switch is silent, because has no fan. Other advantages are Redundant or direct DC power supply.
Switch can be powering with 230V AC input and DC terminal input with variable power from 42 to 56V.
The comprehensive UI is easy to learn and allows administrators to configure and monitor features in a graphical user interface.
For advanced users, a Command-Line Interface (CLI) is available through telnet and SSH.

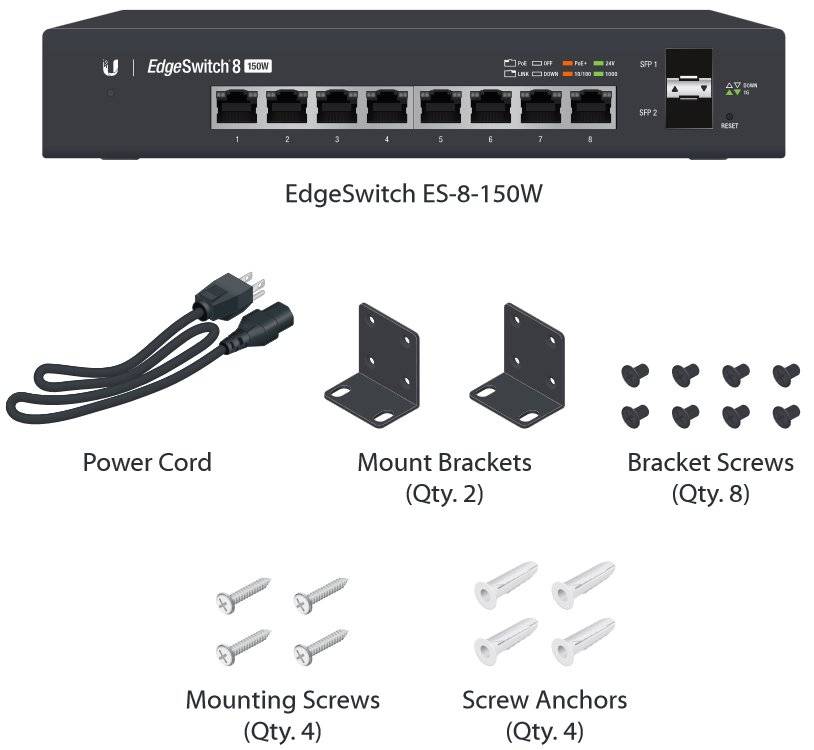

Package contains
- Device
- Power cord
Technical parameters
Connectors and Interfaces
LAN speed : (8) 10/100/1000MbpsOptical interfaces : (2) 1000MbpsSerial port : RJ45Power
Power type : Mains power (230V), DC terminalPoE type : PoE-Out (only)PoE-Out standards : 802.3af, 802.3at, Passive 24VPoE Out ports : 8PoE budget [W] : 150Max. power consumption [W] : 150Power via connector/terminal : 42 .. 56V DC, 230V ACPhysical characteristics
Design : DesktopFans : Without fanChassis design : MetalButtons : ResetOperating temperature [°C] : -25 up to 60Width [mm] : 235Height [mm] : 43Depth [mm] : 204General
Switchning capacity [Gbps] : 20MAC address table : 16000Packet forwarding rate [Mpps] : 14,9Software
Web management : YesManagement : Web management, SSH, TelnetFeatures : VLAN, QoS, DHCP snoopingDefault IP address : 192.168.1.2Default login and password : ubnt / ubnt
