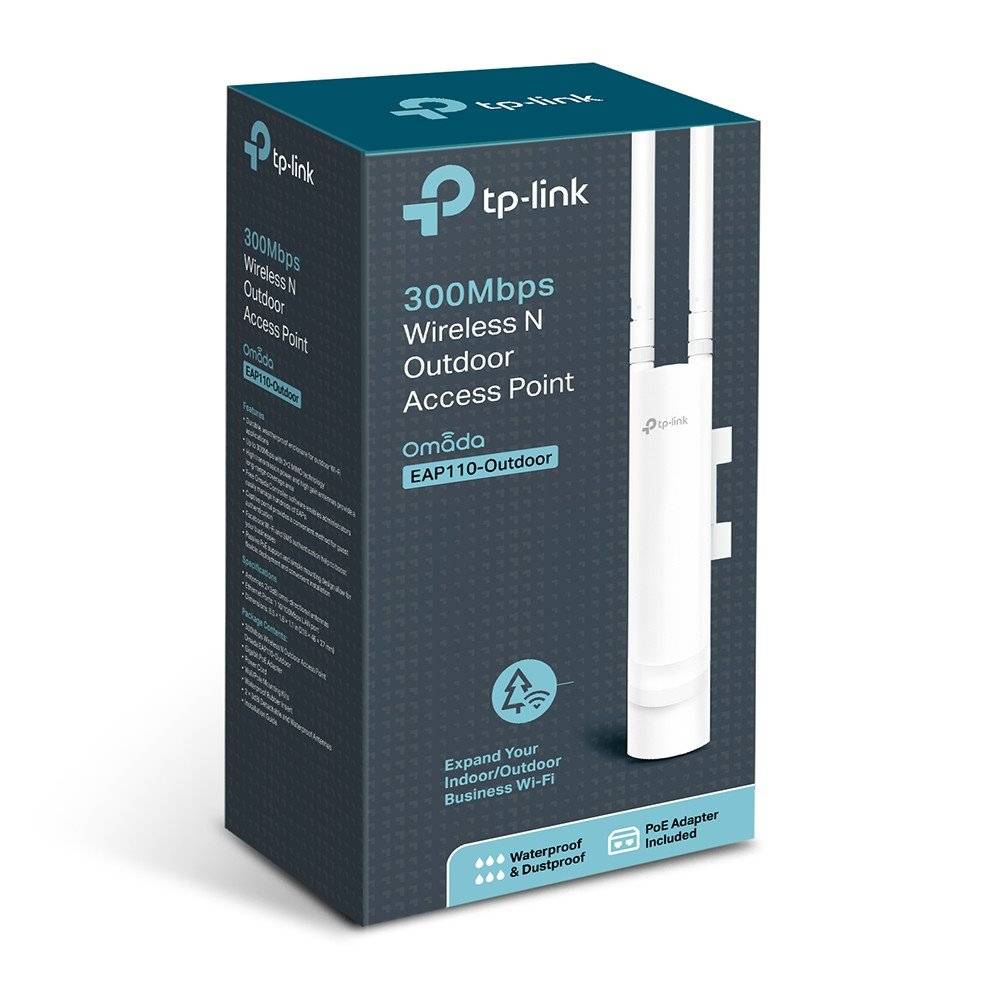

TP-Link EAP110-outdoor Access Point




Product description
With high transmission power and two high-gain omnidirectional antennas, EAP110-Outdoor provides stable wireless coverage
at a range of up to 200 meters in outdoor settings.
Supports Passive PoE for Easy Outdoor Set up
Do away with DC power adapters and power cords with passive Power over Ethernet (PoE), making outdoor deployment simple and fast.
Flexible Installation Options
Secure access points to walls or poles with the mounting kits provided.
Efficient Network Administration in Centrally Managed and Standalone Modes
Centralized Management
Manage hundreds of access points at once with the multi-function Auranet Controller software, ideal for small
and medium-sized business networks.
Standalone Mode
In smaller-scale networks, manage standalone access points with ease via our intuitive web interface.
Weatherproof Enclosure with IP65 Certification
Rated as IP65 during Ingress Protection testing, a resilient weatherproof enclosure protects the access points
against harsh outdoor condition.
Key features
- Built for outdoor Wi-Fi applications
- Up to 300Mbps Wi-Fi with 2x2 MIMO technology
- High transmission power and high gain antennas provide a long-range coverage area
- Durable, weatherproof enclosure to withstand fair and foul weather
- Passive PoE(Power over Ethernet) support and simple mounting design allow for flexible deployment and convenient installation
- Free Auranet Controller Software lets administrators easily manage hundreds of EAPs
- Captive portal provides a convenient method for guest authentication
- Supports management vlan for an enhanced network management
Technical parameters
Wireless features
Wireless frequency : 2.4 GHzWiFi standards : 802.11n, 802.11b/gTransmission speed - 2.4GHz [Mb/s] : 300Tx power 2.4GHz [dBm] : 27Security : 64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK2.4GHz MIMO : 2 x 2Detachable antennas : 2Roaming : YesAntenna gain [dBi] : 5Connectors and Interfaces
RF connectors : (2) RSMA femaleLAN speed : (1) 10/100MbpsPower
Power over Ethernet : 24V DCPoE type : PoE-In (only)Max. power consumption [W] : 6,3Physical characteristics
Purpose : OutdoorButtons : ResetOperating temperature [°C] : -30 up to 65Width [mm] : 95Height [mm] : 209Depth [mm] : 43Software
Operating mode : Access PointManagement : Omada controller
