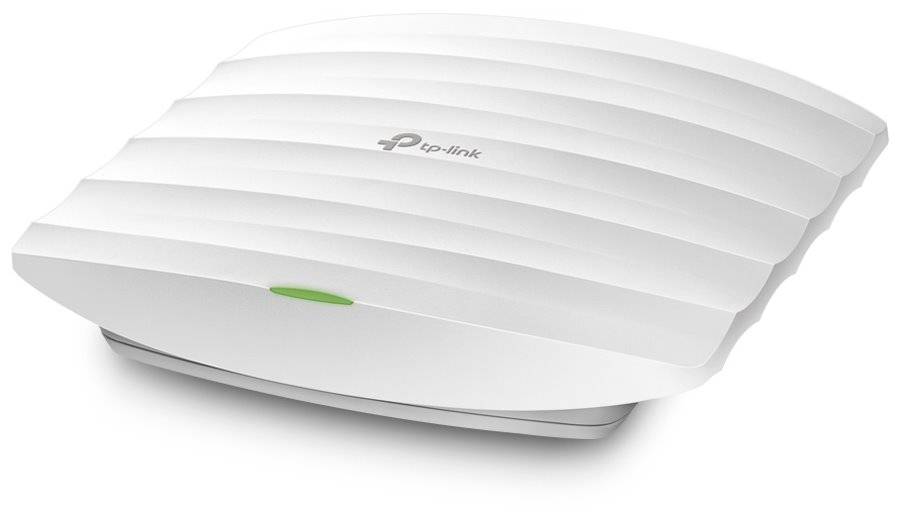

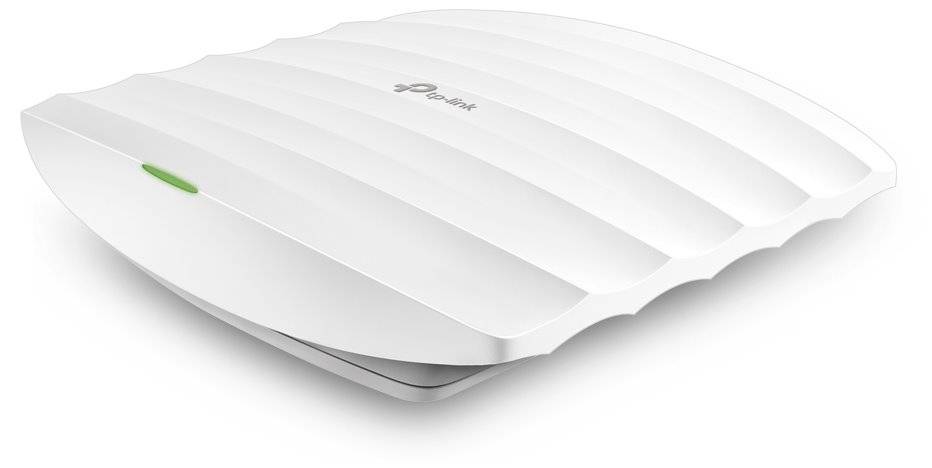

TP-Link EAP265 HD Access Point

Product description

An Affordable Business-Class 802.11ac MU-MIMO Wi-Fi Solution

Outfitted with the latest 802.11ac MU-MIMO technology, the EAP265 HD easily delivers dual-band Wi-Fi speeds of
up to 1300 + 450 Mbps to multiple devices at the same time.

Easy for Centralized Management

Manage and monitor hundreds of EAPs with ease, all from a single location.
The TP-Link Omada Controller software provides an intuitive management interface.
Control and map out the entire network from any connected PC.
There’s no added cost, and no need for special training.
Business Wi-Fi management has never been so efficient and cost-effective.

Efficient Guest Authentication with Facebook and SMS Support

Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly
authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive
portal even further to simplify connectivity and boost your business.

Powering over PoE

EAP265 HD supports both 802.3af PoE and Passive PoE power supply, can be either powered by a PoE switch
or the provided PoE adapter, making deployment effortless and flexible.

Package contains

• EAP265 HD device
• Gigabit PoE power adapter + power cord
• Ceiling kit
• Screws



  Technical parameters

  Wireless features

  Wireless frequency : 2.4 + 5 GHz (dual band)

  WiFi standards : 802.11ac, 802.11n, 802.11a, 802.11b/g

  MU-MIMO : Yes

  Transmission speed - 5GHz [Mb/s] : 1300

  Transmission speed - 2.4GHz [Mb/s] : 450

  Tx power 2.4GHz [dBm] : 20

  Tx power 5GHz [dBm] : 23

  Security : WEP, WPA, WPA2

  2.4GHz MIMO : 3 x 3

  5GHz MIMO : 3 x 3

  Type of antenna : Built-in

  Internal antennas : 6

  Roaming : Yes

  Antenna gain [dBi] : 3,5, 4

  Connectors and Interfaces

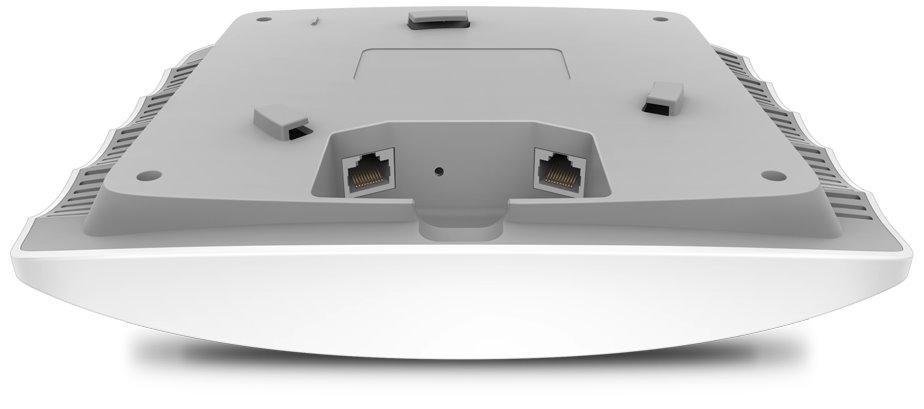

  LAN speed : (2) 10/100/1000Mbps

  Gigabit LAN : Yes

  Power

  Power over Ethernet : 802.3af, 802.3at, 48V DC

  PoE type : PoE-In (only)

  Max. power consumption [W] : 12,3

  Physical characteristics

  Purpose : Indoor

  Buttons : Reset

  Operating temperature [°C] : 0 up to 40

  Width [mm] : 206

  Height [mm] : 37

  Depth [mm] : 182

  Software

  Operating mode : Access Point

  Management : Omada controller

  Default IP address : Dynamic from DHCP

  Default login and password : admin / admin
