Ubiquiti UF-NANO - U Fiber Nano

Ubiquiti UF-NANO - U Fiber Nano

מק"ט: UF-Nano

UF-NANO הוא רכיב מסוף GPON קומפקטי ובו זמנית בנוי חזק עם תצוגת LED להצגת התפוקה
הנוכחית/כתובת ה-IP ומצב ה-Ethernet והקו האופטי.

מהירות קו ה-PON היא מקסימלית (Rx/Tx) 2.488 / 1.244Gbps, מהירות ה-ethernet היא 10/100/1000Mbps
והמכשיר ככזה יכול להיות מופעל רק באמצעות מתאם PoE פסיבי 24V.
ככזה, המכשיר משמש להמרת מתכתי לאופטי ויכול להשתמש רק במצב גשר, לא במצב נתב.

מפרטמידע נוסף
סה"כ: 452 כולל מע"מ
קניה בטוחה
קניה בטוחה
תשלוםתשלום: עד 12 תשלומים ללא ריבית
זמן אספקהזמן אספקה: 10-14 ימי עסקים, אלא אם נקבע אחרת
אחריותאחריות: אחריות מול רוניטק על פי אחריות יצרן
  • מפרט
  • מידע נוסף
Part number: UF-Nano
Vendor: Ubiquiti
Type: ONU
LAN speed: 1G
Categories: GPON a GEPON
Transmission speed: 2.488 / 1.244 Gbps
Transfer Type: GPON

Product description

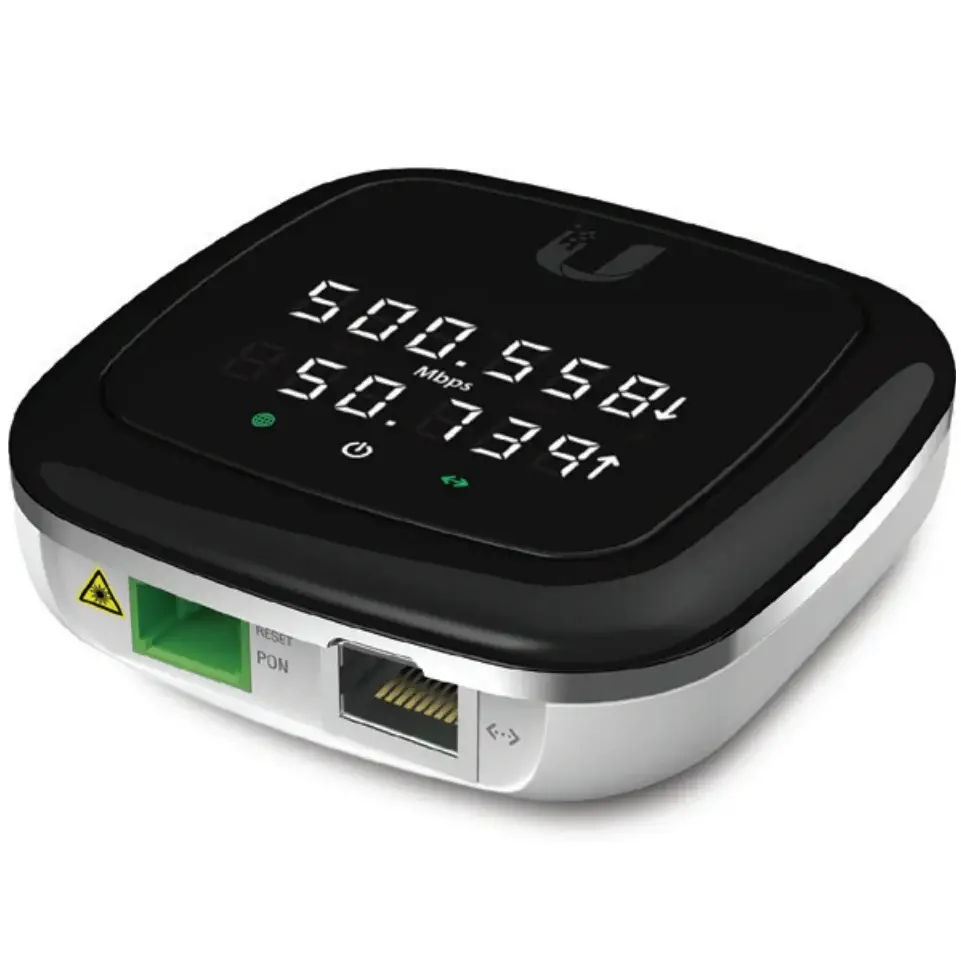

UF-NANO is a compact and at the same time robustly built GPON terminal element with an LED display
for displaying the current throughput / IP address and the status of the Ethernet and optical line.

The speed of the PON line is maximum (Rx/Tx) 2.488 / 1.244Gbps, the speed of the ethernet is 10/100/1000Mbps
and the device as such can only be powered via a 24V passive PoE adapter. As such, the device serves to convert
metallic to optical and can only use Bridge mode, not Router mode.

UF-NANO installation

Package contains

  • Device
  • PoE power adapter 24V / 0.3A
  • Power cord
  • (4) screws and screw anchors
  • Wall Mount Bracket



Technical parameters

Optics

Transmission speed : 2.488 / 1.244 Gbps
Wavelength - Tx/Rx [nm] : 1310 / 1490
Distance [km] : 20
Transfer type : GPON
Polishing type : APC

Connectors and Interfaces

Optical Connectors : (1) SC
LAN speed : (1) 10/100/1000Mbps

Power

Power over Ethernet : 20 .. 28V DC
Max. power consumption [W] : 7

Physical characteristics

Buttons : Reset
Operating temperature [°C] : -10 up to 45
Width [mm] : 77
Height [mm] : 77
Depth [mm] : 28

Software

Default IP address : 192.168.1.1
Default login and password : ubnt / ubnt
