MikroTik Cloud Router Switch CRS304-4XG-IN

Product description

The Cloud Router Switch CRS304-4XG-IN is a compact yet highly powerful switch powered by the RouterOS operating system,
offering advanced features such as port forwarding, VLAN, MAC address filtering, broadcast storm control, QoS,
bandwidth limitation, and many other network management options.

This switch is equipped with four 10 Gb Ethernet ports. Additionally, it includes an extra 1 Gb Ethernet port for
management purposes.

It comes with a side-mounted DIN rail bracket and standard mounting holes on the back for easy installation. The DIN rail
bracket can also be moved to the back of the switch if needed.

The device features a housing that doubles as a sturdy, lightweight heatsink, eliminating the need for active cooling.
This fanless design ensures quiet operation.

Multiple Power Options for Maximum Reliability

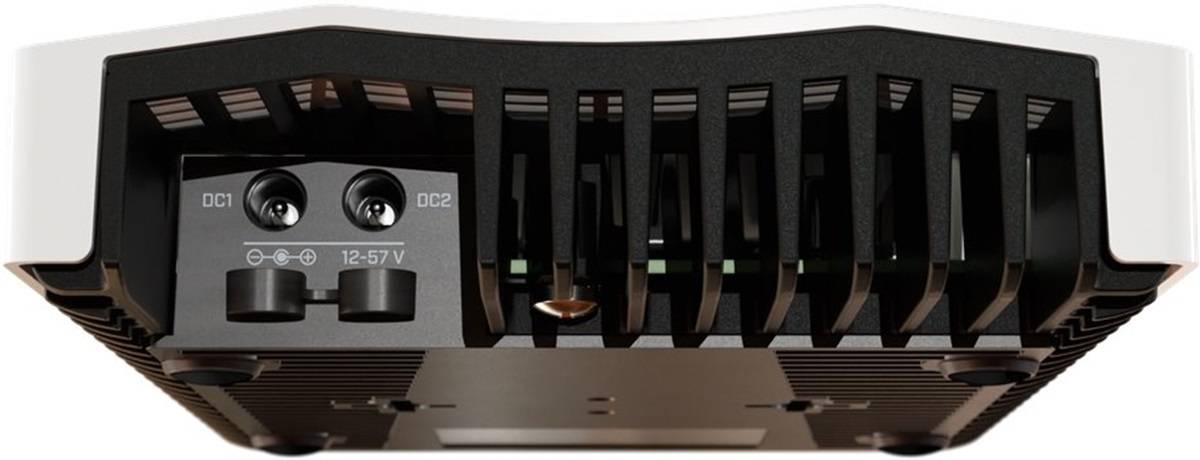

Power redundancy is a key feature of the CRS304. It offers four different power options: 2x jack (12 - 57V DC), a 2-pin connector, and PoE-in.
The device automatically selects the power source with the highest voltage, ensuring uninterrupted operation. CRS304 is powered by a dual-core
ARM processor, providing sufficient performance.

Package Contents

• Device
• Power adapter (48V / 0.95A)
• Mounting kit



  Technical parameters

  Connectors and Interfaces

  LAN speed:(4) 100M/1G/2.5G/5G/10Gbps + (1) 10/100/1000Mbps

  Gigabit LAN:Yes

  Power

  Power over Ethernet:802.3af, 802.3at, 36 .. 57V DC

  Power type:PoE, DC connector

  PoE type:PoE-In (only)

  Redundant power supply:Yes

  Max. power consumption [W]:21

  Power via connector/terminal:12 .. 57V DC

  Physical characteristics

  Design:On the wall, Desktop, DIN rail

  Fans:No

  Chassis design:Metal

  Buttons:Reset

  Operating temperature [°C]:-40 up to 70

  Width [mm]:128

  Height [mm]:176

  Depth [mm]:35

  Hardware

  CPU:98DX2528

  CPU frequency [MHz]:1200

  CPU cores:2

  Internal storage [MB]:32

  RAM [MB]:512

  Software

  Web management:Yes

  Management:Web management, Telnet, Winbox

  Features:VLAN, L3

  Operating system:RouterOS v7 - L5
