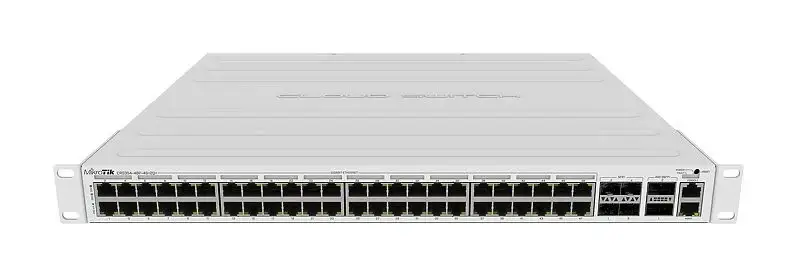

MikroTik Cloud Router Switch CRS354-48P-4S+2Q+RM

Product description

MikroTik Cloud Router Switch CRS354-48P-4S+2Q+RM is very powerfull switch with 2x QSFP+, 4x SFP+, 48x Gigabit and one 10/100Mbps metalic
port only for management.
Switch provides total throughput 168 Gbps and switching capacity 336 Gbps with 235 Mpps forwarding rate for most conventional packets.

48 PoE Out ports for cameras and wireless radios

The switch has an integrated 800W power supply capable of delivering 700W total power to PoE ports. Each copper port supports PoE 802.3af/at or
passive 26 and 53V DC with a power limit set at 30W at 52V or 26W at 26V.

Package contains

• Device
• Power cord
• Rackmount ears
• Cable management



  Technical parameters

  Connectors and Interfaces

  LAN speed : (48) 10/100/1000Mbps

  Gigabit LAN : Yes

  Management LAN : (1) 10/100Mbps

  Optical interfaces : (4) 10Gbps + (2) 40Gbps

  Serial port : RJ45

  Power

  Power type : Mains power (230V)

  PoE type : PoE-Out (only)

  PoE-Out standards : 802.3af, 802.3at, Passive 24V, Passive 48V

  PoE Out ports : 48

  PoE budget [W] : 750

  Max. power consumption [W] : 800

  Power via connector/terminal : 230V AC

  Physical characteristics

  Design : Rackmount

  "U" positions : 1

  Fans : Yes

  Chassis design : Metal

  Buttons : Reset

  Operating temperature [°C] : -20 up to 60

  Width [mm] : 443

  Height [mm] : 44

  Depth [mm] : 297

  Hardware

  CPU : QCA9531

  CPU frequency [MHz] : 650

  CPU cores : 1

  Internal storage [MB] : 16

  RAM [MB] : 64

  General

  Switchning capacity [Gbps] : 336

  Packet forwarding rate [Mpps] : 235

  Software

  Web management : Yes

  Management : Web management

  Features : VLAN, QoS, DHCP snooping, L3

  Operating system : RouterOS - L5

  IPv6 support : Yes

  Default IP address : 192.168.88.1

  Default login and password : admin / -
