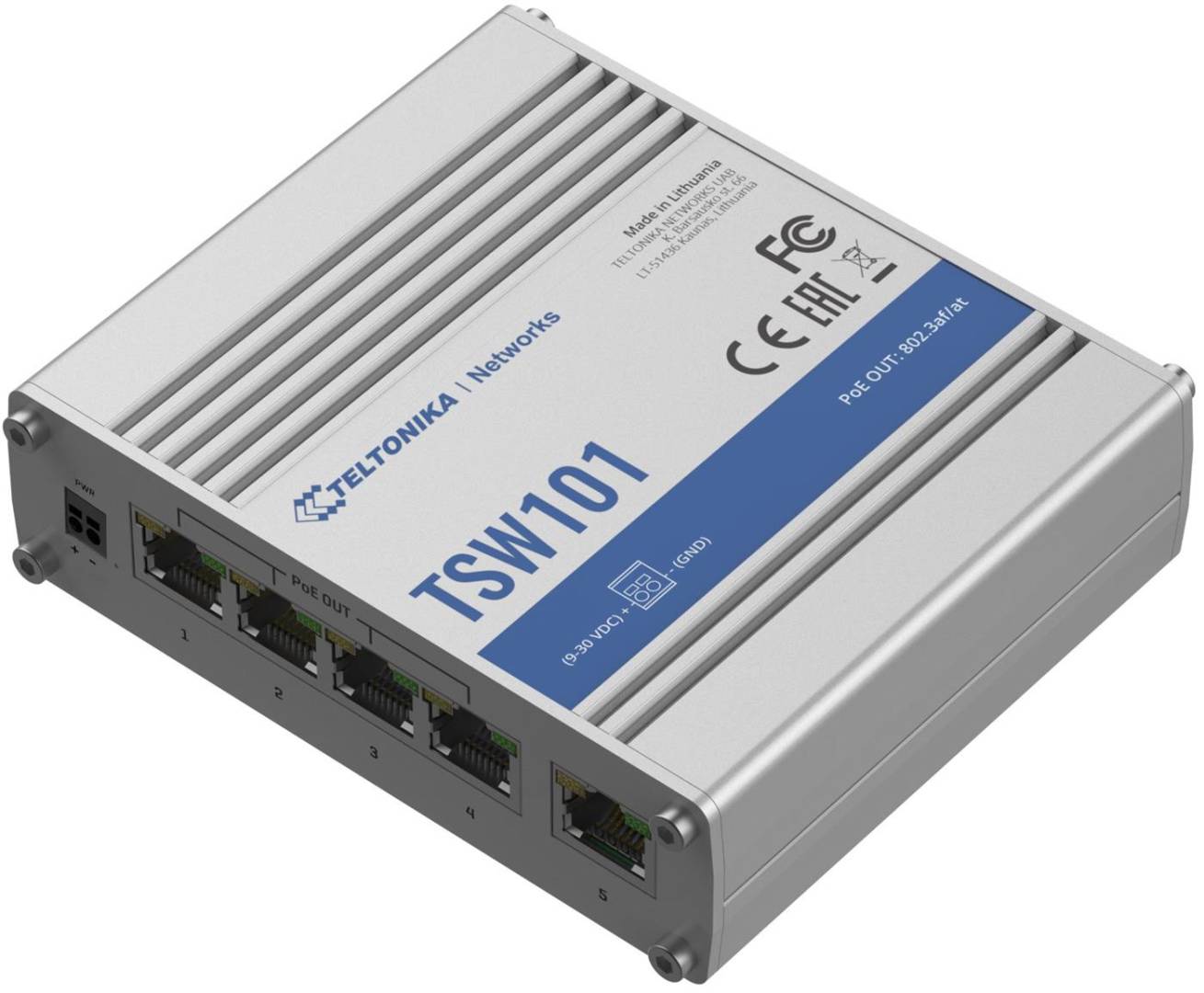

Teltonika TSW101 Industrial PoE Unmanaged Switch

Product description

TSW101 is an industrial POE Switch from Teltonika Networks with aluminum body, passive cooling, without management
and after buying the kit it is possible to install the switch on the DIN bar.
The device offers 5 LAN ports with a speed of 10/100/1000 Mbps and with 802.3af/at Poe (30 W/port) on the first four
ports with a total poe budget 60 W.
The power supply is solved by a 2-pin terminal block with input voltage 9 to 30 V.

Package content

• TSW101



  Technical parameters

  Connectors and Interfaces

  LAN speed : (5) 10/100/1000Mbps

  Power

  Power type : DC terminal

  PoE type : PoE-Out (only)

  PoE-Out standards : 802.3af, 802.3at

  PoE Out ports : 4

  PoE budget [W] : 60

  Max. power consumption [W] : 2,3

  Power via connector/terminal : 9 .. 30V DC

  Physical characteristics

  Protection class : IP30

  Design : Desktop

  Fans : No

  Chassis design : Metal

  Operating temperature [°C] : -40 up to 75

  Width [mm] : 115

  Height [mm] : 32

  Depth [mm] : 95

  General

  Switchning capacity [Gbps] : 10

  MAC address table : 2000
