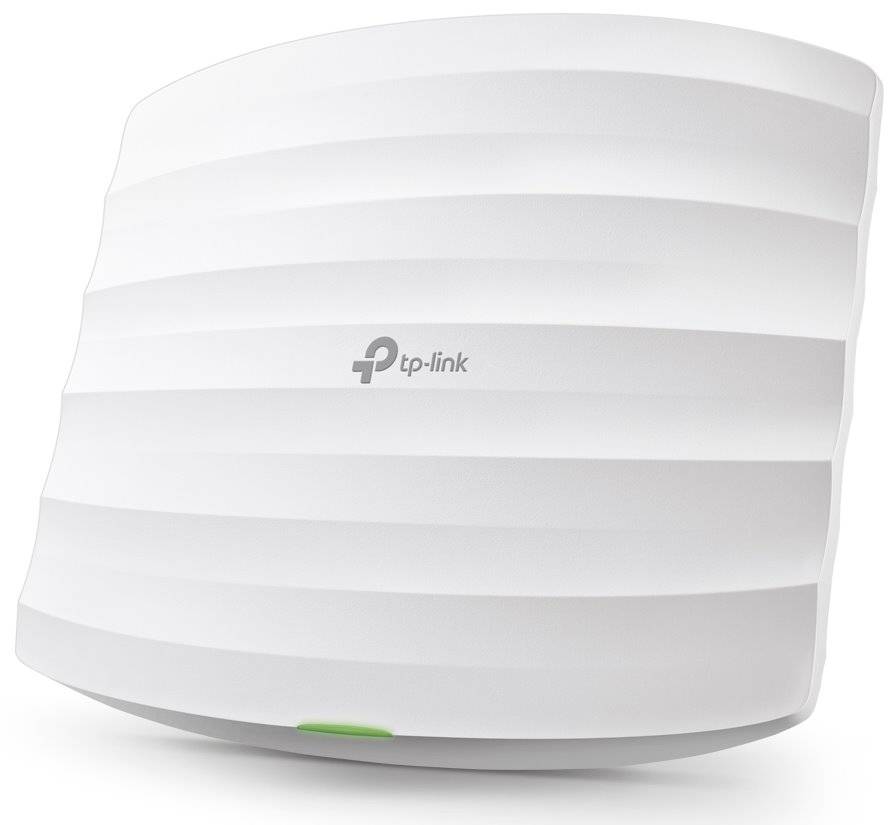

TP-Link EAP225 Access Point

Product description

An Affordable Business-Class 802.11ac MU-MIMO Wi-Fi Solution

Outfitted with the latest 802.11ac Wave 2 MU-MIMO technology, the EAP225 easily delivers dual-band Wi-Fi speeds of
up to 1350 Mbps to multiple devices at the same time.

Easy for Centralized Management

Manage and monitor hundreds of EAPs with ease, all from a single location. The TP-Link Omada Controller software
provides an intuitive management interface. Control and map out the entire network from any connected PC.
There’s no added cost, and no need for special training. Business Wi-Fi management has
never been so efficient and cost-effective.

Efficient Guest Authentication with Facebook and SMS Support

Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly
authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies
the captive portal even further to simplify connectivity and boost your business.

Multiple PoE Options for Easy Installation

EAP225 supports both 802.3af PoE and Passive PoE power supply, can be either powered by a PoE switch or the provided
PoE adapter, making deployment effortless and flexible.

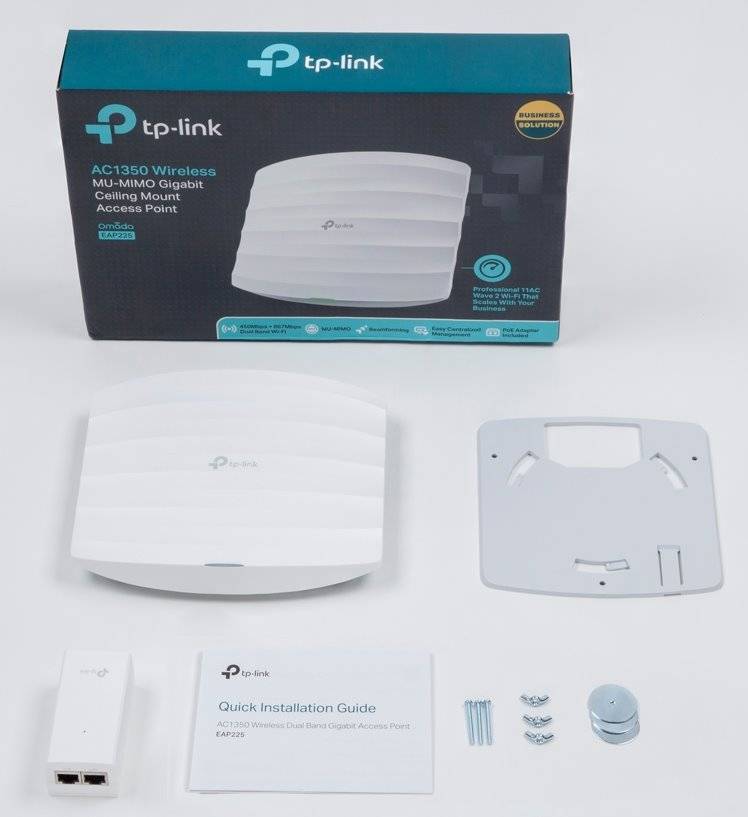

Package contains

• Device
• PoE power adapter
• Ceiling kit
• Screws



  Technical parameters

  Wireless features

  Wireless frequency : 2.4 + 5 GHz (dual band)

  WiFi standards : 802.11ac, 802.11n, 802.11a, 802.11b/g

  Transmission speed - 5GHz [Mb/s] : 866

  Transmission speed - 2.4GHz [Mb/s] : 450

  Tx power 2.4GHz [dBm] : 20

  Tx power 5GHz [dBm] : 23

  Security : 64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK

  2.4GHz MIMO : 3 x 3

  5GHz MIMO : 2 x 2

  Type of antenna : Built-in

  Internal antennas : 5

  Roaming : Yes

  Antenna gain [dBi] : 4

  Connectors and Interfaces

  LAN speed : (1) 10/100/1000Mbps

  Gigabit LAN : Yes

  Power

  Power over Ethernet : 802.3af, 24V DC

  PoE type : PoE-In (only)

  Max. power consumption [W] : 11

  Physical characteristics

  Purpose : Indoor

  Operating temperature [°C] : 0 up to 60

  Software

  Operating mode : Access Point

  Management : Omada controller

  Default IP address : Dynamic from DHCP

  Default login and password : admin / admin
